3 Stage Whole House Water Filter System for UAE Homes
The Aqua Hygiene 3 Stage Whole house water filter is installed on the main water supply line to help reduce sand, rust, suspended sediment, chlorine and unpleasant odour before water is distributed throughout the property. It uses three full-size 20 × 4.5-inch cartridges and supports residential flow rates of up to 15 GPM under suitable operating conditions.
- Stage 1 – 1-Micron PP Sediment: Helps capture sand, rust, dirt and suspended sediment.
- Stage 2 – CTO Carbon Block: Helps reduce chlorine and unpleasant taste and odor.
- Stage 3 – GAC Activated Carbon: Provides an additional carbon-treatment stage to help further reduce residual chlorine and unpleasant odour.
| Request an Installation Quote |
|---|

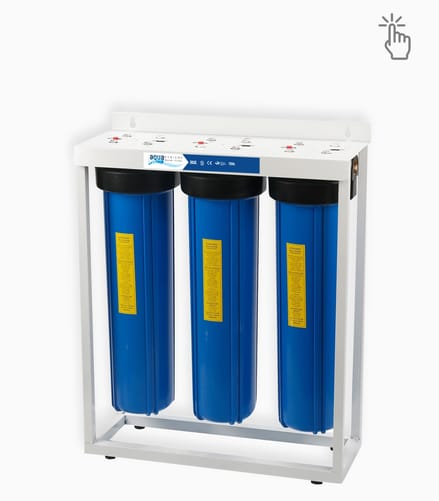

3 Stage Whole House Water Filter System
The 3 Stage Whole House Water Filter System provides high-flow water filtration for homes and villas in the UAE. Installed on the main water supply line, the system filters water before it is distributed throughout the property, helping reduce sand, rust, sediment, chlorine, and unpleasant odours from the household water supply.
Using three full-size 20" × 4.5" filter cartridges, the system combines 1-micron sediment filtration with two stages of activated carbon filtration. It is imported from Taiwan, designed with USA technology, and supplied by Aqua Hygiene for residential whole-house applications.
Key Features of the Whole House Water Filter
- 3-stage whole-house filtration for the main water supply
- Large 20×4.5 filter cartridges
- Helps reduce sand, rust, sediment, chlorine, and unpleasant odours
- 1-inch inlet and outlet for high-flow residential plumbing
- Maximum rated flow: up to 15 GPM under suitable operating conditions.
- Recommended for households of approximately 5–7 people
- Durable three-housing system with a supporting frame
- 1-year limited warranty
What Is a 3-Stage Whole House Water Filter?
This makes whole-house filtration particularly useful where the objective is to improve the quality of water supplied to bathrooms, showers, washbasins, kitchens, washing machines and other household water points.
Our system uses three different filtration stages rather than relying on a single cartridge.

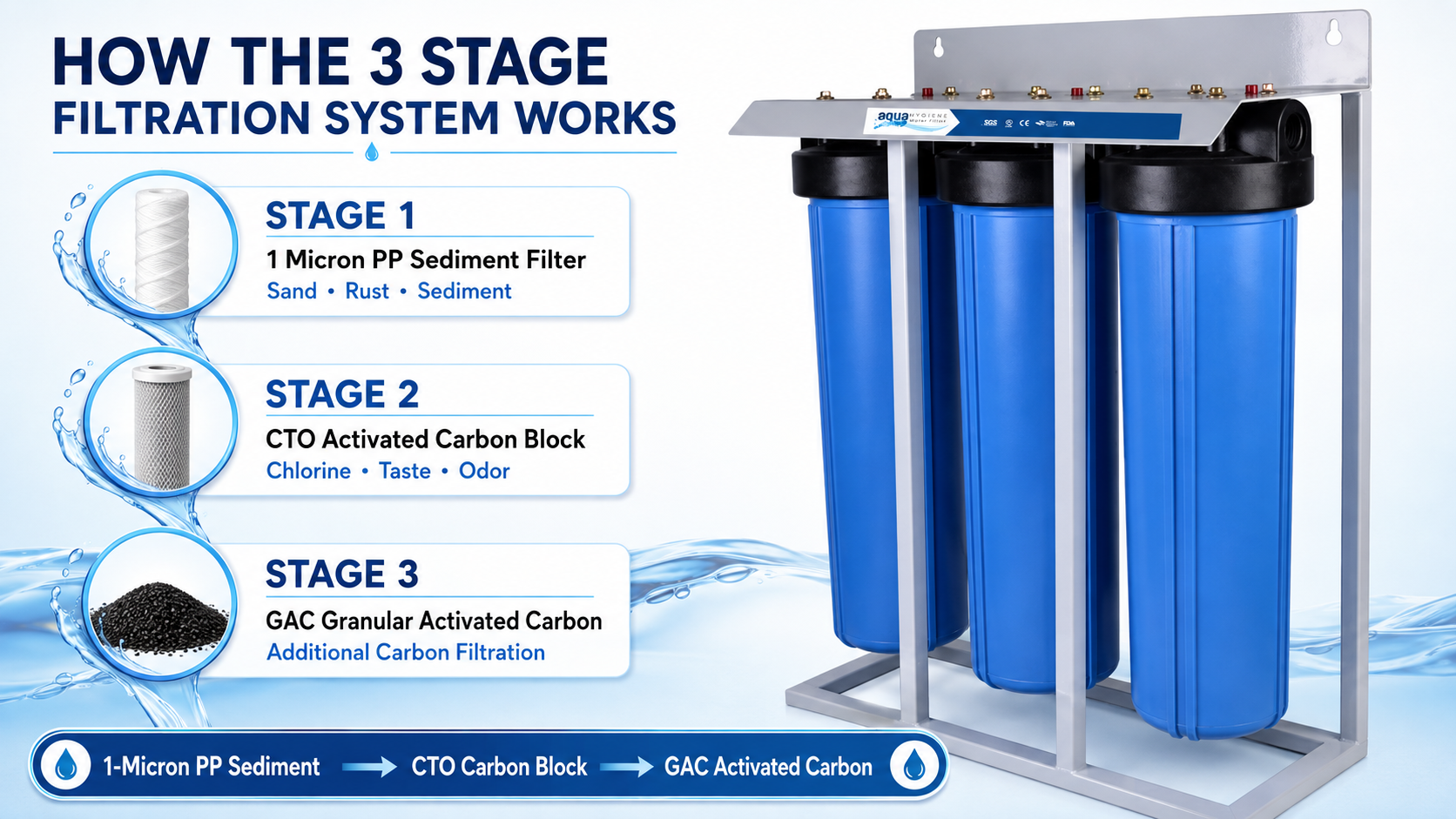

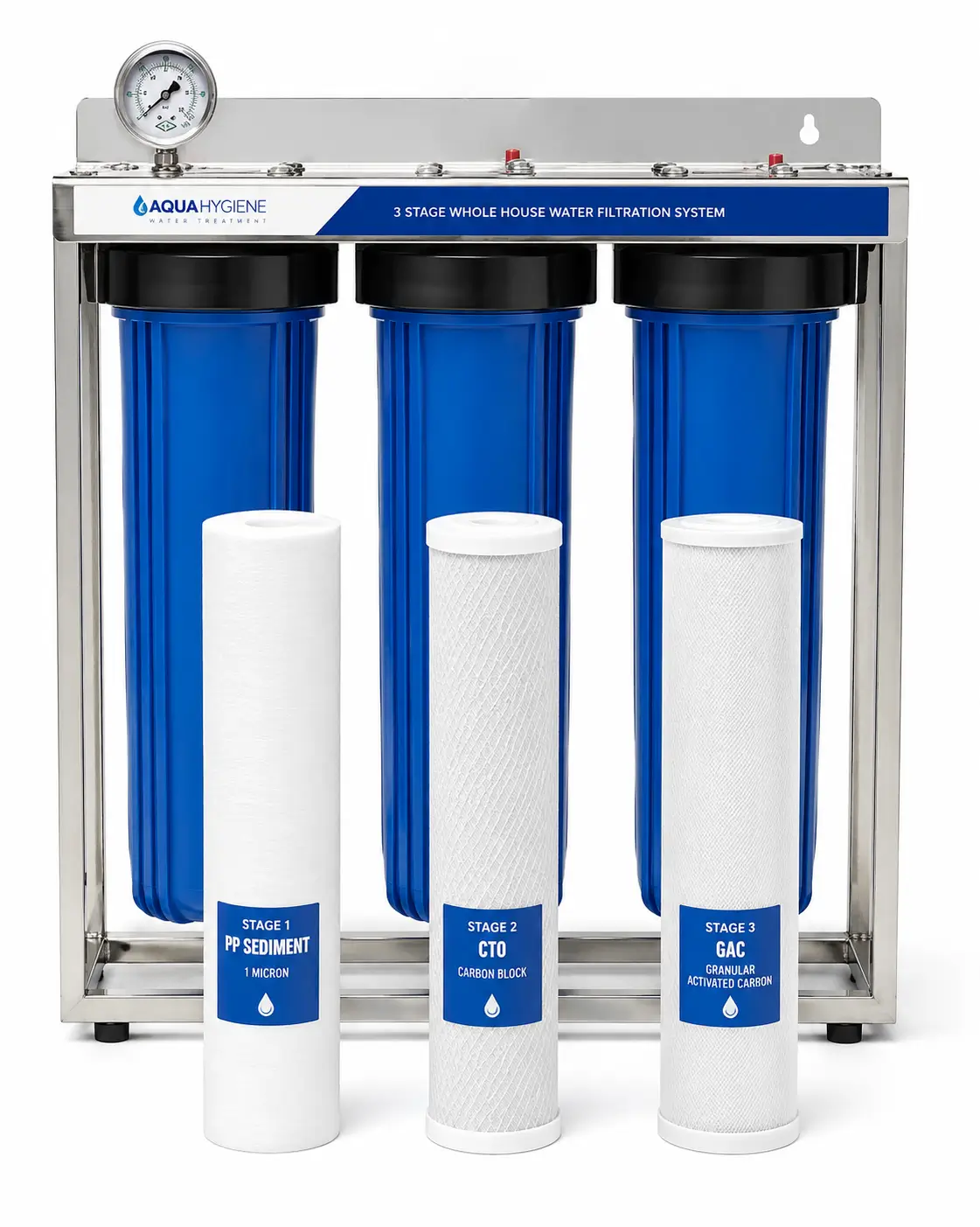

How the 3 Stage Filtration System Works
Stage 1 – 1 Micron PP Sediment Filter
Its purpose is to capture fine suspended particles such as: Sand, Rust, Dirt, Sediment, Other suspended particulate matter.
Placing sediment filtration first also helps protect the downstream carbon cartridges from excessive particulate loading.
Stage 2 – CTO Activated Carbon Block
Activated carbon is primarily used to help reduce chlorine and undesirable taste and odour /compounds in the water. The carbon-block format also provides an additional filtration barrier after the PP sediment stage.
Stage 3 – GAC Granular Activated Carbon

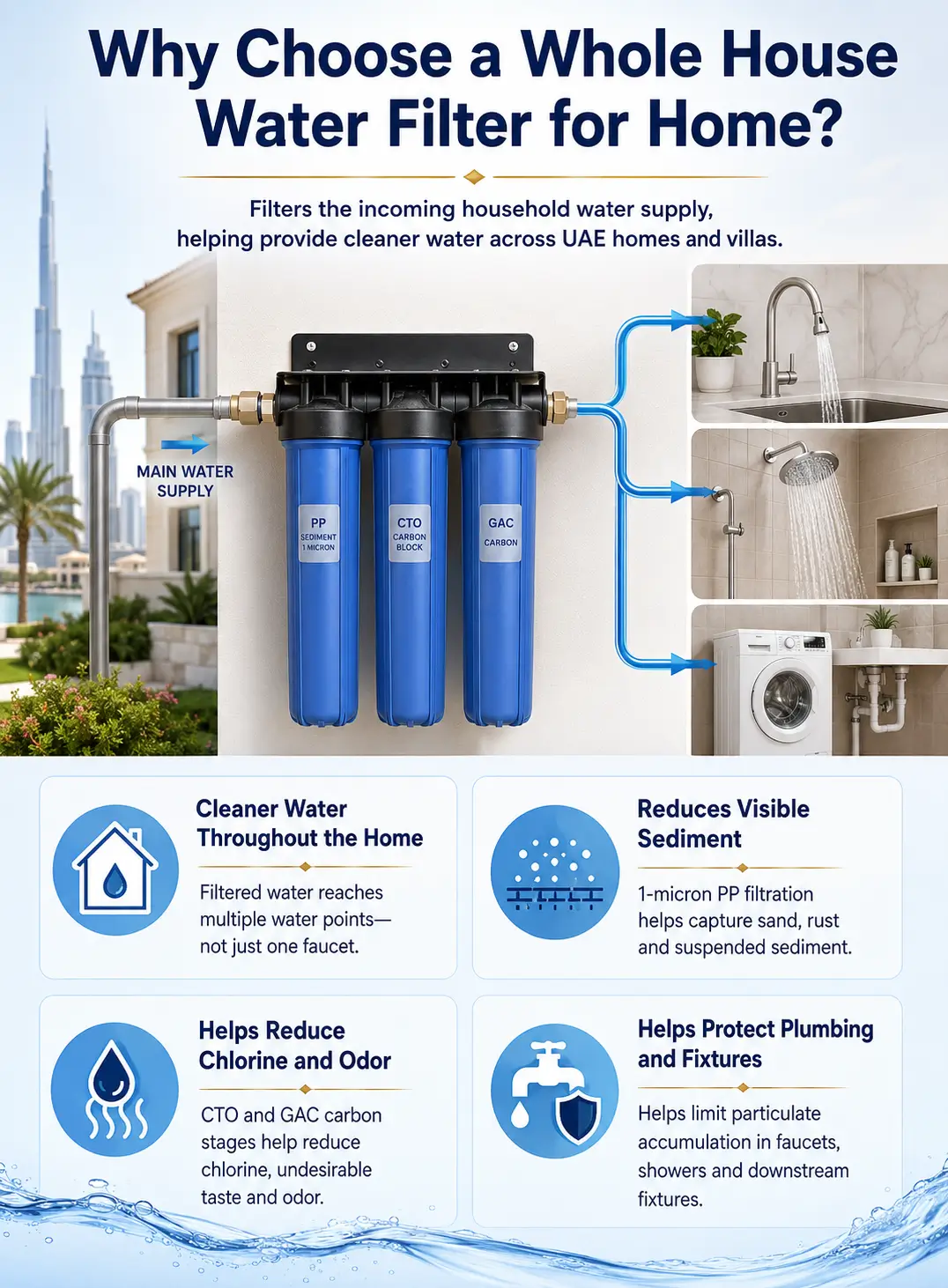

Why Choose a Whole House Water Filter for Home?
For UAE homes and villas, this can be particularly useful where sediment or other particles may enter the property's plumbing system through the incoming supply or water-storage infrastructure.
Cleaner Water Throughout the Home
Reduces Visible Sediment
Helps Reduce Chlorine and odour
Helps Protect Household Plumbing and Fixtures
Designed for Homes and Villas in the UAE
whole house water filter suitable for
Townhouses
Larger residential homes
Households of approximately 5–7 people
Properties experiencing sediment, sand, rust, chlorine or odour concerns
For installations in outdoor or utility areas, the system should be positioned appropriately and protected from direct sunlight, excessive environmental heat and unnecessary weather exposure.
This distinction is important in the UAE: the stated 40–100°F (4.4–37.8°C) operating temperature refers to the water/system operating range and should not be interpreted as an unrestricted outdoor ambient-temperature rating.

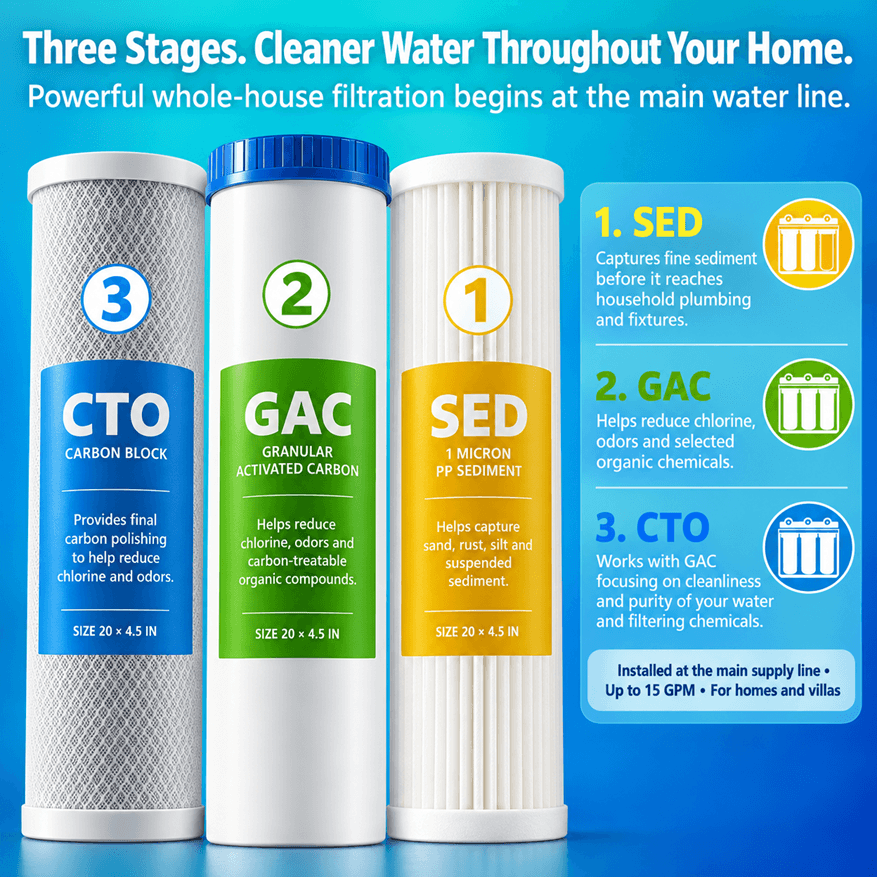

20 × 4.5 Inches High-Capacity Filter Cartridges
Their larger format provides greater filtration-media capacity than smaller point-of-use cartridges and is better suited to the higher water-flow requirements associated with whole-house applications. The 1-inch inlet and outlet connections also support integration with suitable residential main-line plumbing.
What Does This Whole House Water Filter Reduce?
Sediment, Sand and Rust
The first-stage 1-micron PP cartridge captures fine suspended particles before they reach the carbon filtration stages and household plumbing.
Chlorine
The CTO and GAC stages use activated carbon to help reduce chlorine in the incoming water.
Unpleasant odour
Activated carbon filtration can help improve water with undesirable chlorine-related or other carbon-treatable odours.
It is important to understand what this system does not do.
This product is a whole-house filtration system, not an RO drinking-water purifier and not an ion-exchange water softener. This system does not reduce dissolved salts/TDS or soften hard water. Separate treatment is required for these purposes.
Whole House Water Filter vs. Water Softener
A water filter and a water softener solve different water-quality problems.
This 3 stage water filtration system primarily targets suspended sediment and carbon-treatable contaminants such as chlorine and odour. A traditional water softener uses ion-exchange resin to reduce hardness minerals such as calcium and magnesium.
If the main problem in a property is hard water or limescale, a dedicated water-softening system may be required in addition to filtration.
Similarly, customers requiring purified drinking water with substantial dissolved-solids reduction should consider a suitable reverse osmosis drinking-water system at the point of use.

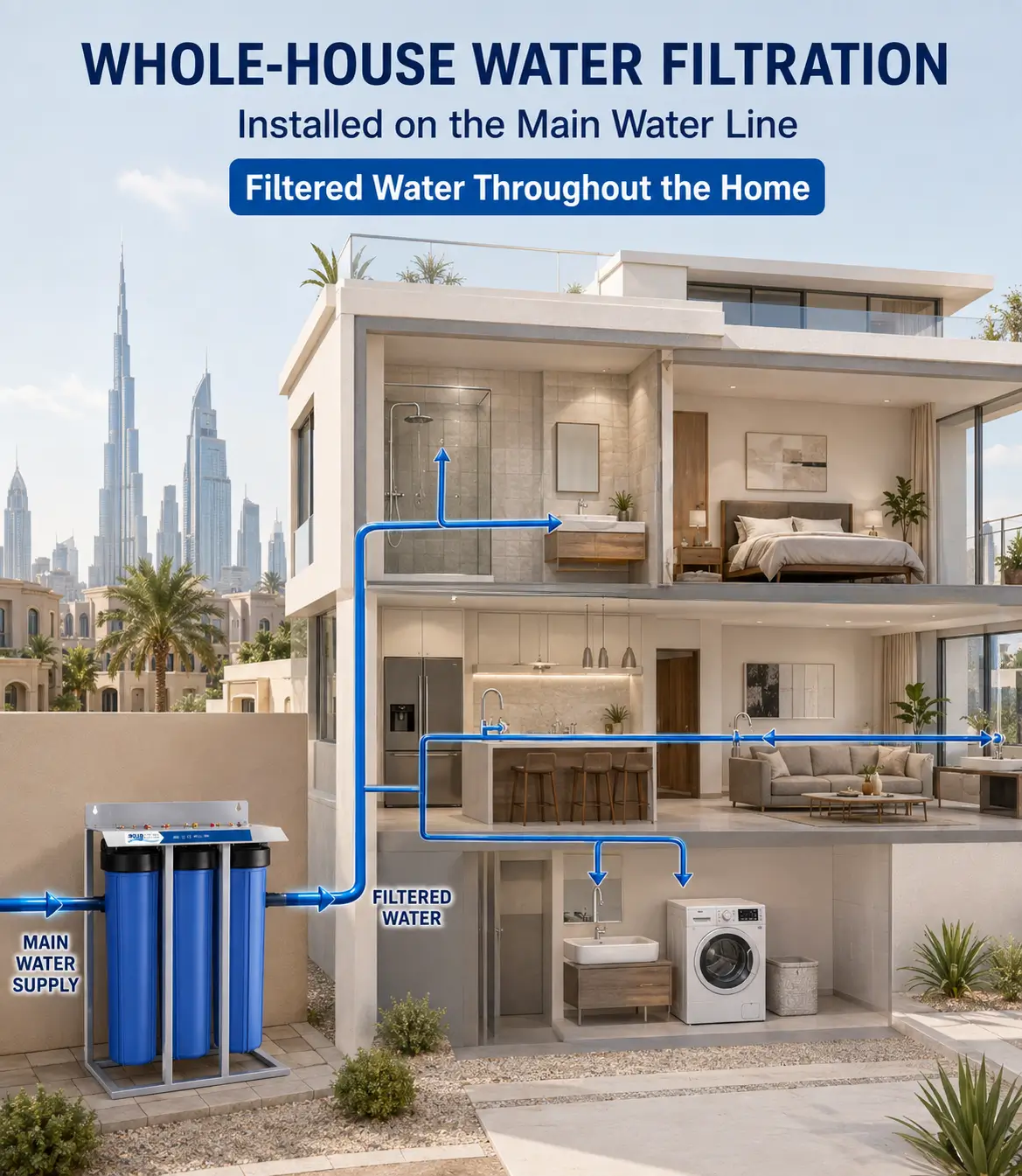

Installation on the Main Water Supply
The system is installed on the main water supply line so incoming water passes through all three cartridges before being distributed throughout the home.
The exact installation arrangement should be determined according to the property's plumbing configuration, available installation space, incoming pressure and water-supply setup.
Aqua Hygiene can assess the installation requirements and recommend an appropriate location for the system.
Filter Replacement and Maintenance
Cartridge-replacement frequency depends on incoming water quality, sediment concentration, chlorine level, household consumption and cartridge condition
• Incoming water quality
• Sediment concentration
• Chlorine level
• Household water consumption
• Number of occupants
• Water pressure
• Cartridge condition
A property with significant sediment loading may require replacement sooner than a property receiving relatively clean incoming water.
Aqua Hygiene can inspect the system and recommend replacement according to the actual operating conditions rather than relying solely on a generic time interval.
| Filtration Method | Activated Carbon, CTO, Carbon Block, Coconut Shell Carbon, GAC, Polypropylene, Sediment |
|---|---|
| Number of Stages | 3 Stages |
| Cartridge Size | 20 × 4.5 inches |
| Maximum rated flow | 15 GPM |
| Inlet and outlet | 1 inch |
| Operating Pressure | 40–100 PSI |

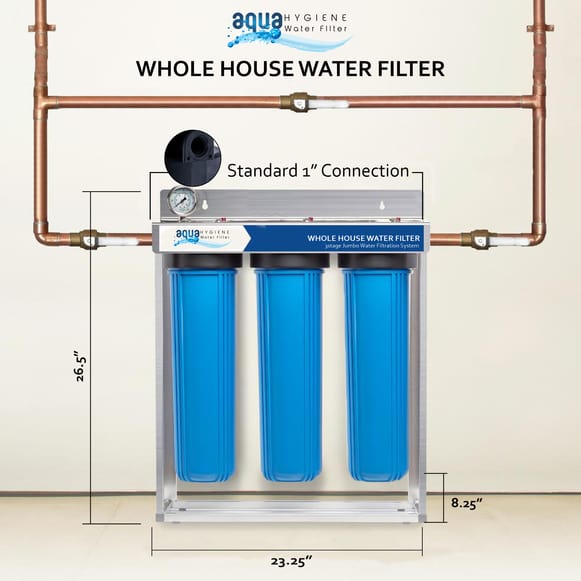

| Dimensions | 29¼ × 23½ × 8½ inches |
| Product Weight (Kg.) | 28.6 Kg |
| House Hold Size | 5-7 people |
| Installation Point | Main incoming water supply line |
| Application Type | Residential |
| Origin | Imported from Taiwan |
| Brand | CCK |
