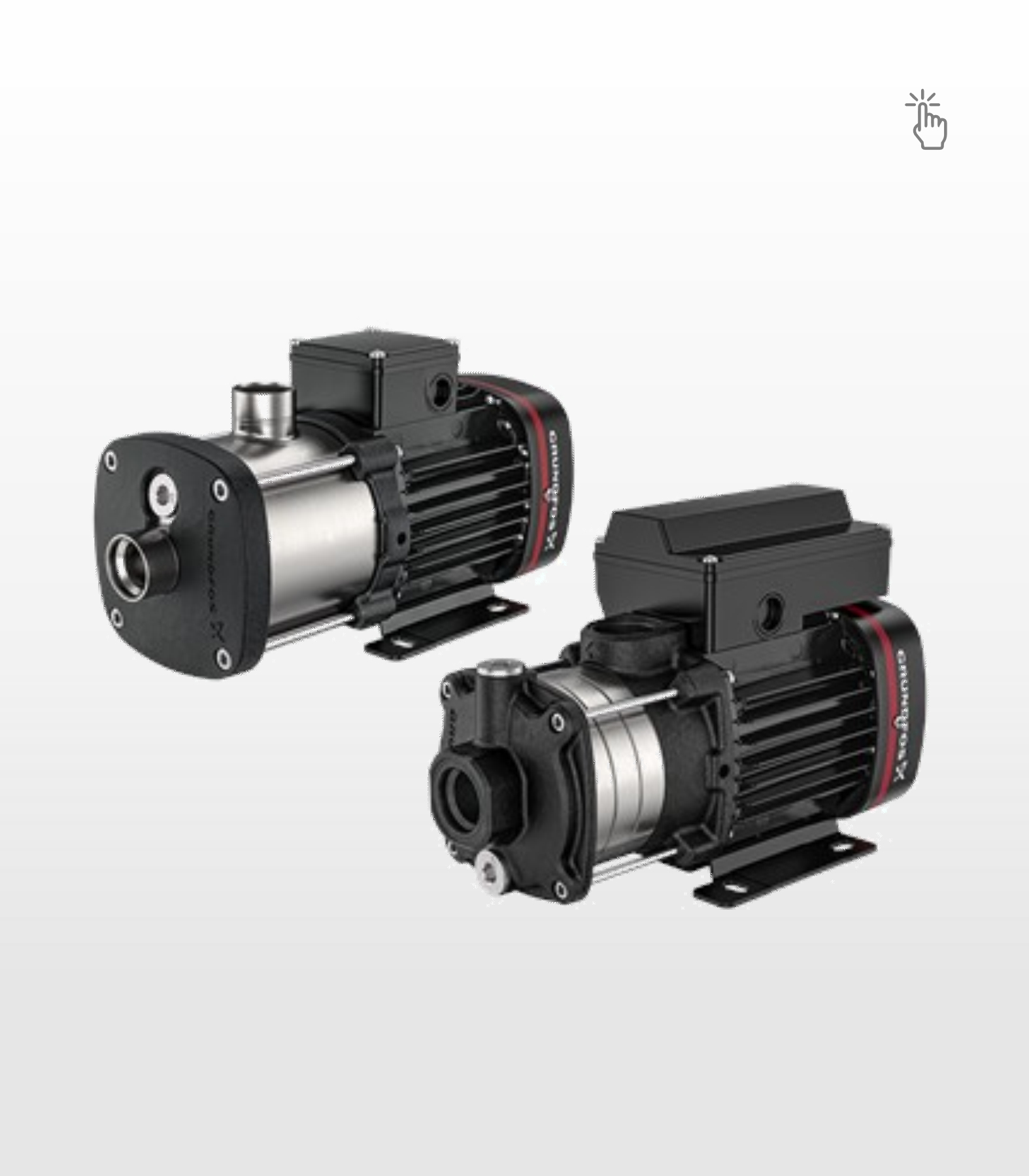

Grundfos CM Horizontal Water Pump

Grundfos CM Horizontal Water Pump

We at Water Filter Dubai offer the Grundfos CM Horizontal Water Pump. It is a robust and reliable pump designed to handle water effortlessly. It is ideal for residential, small offices, and small industrial applications that demand water pressure. Due to its compact structure, it is ideal for use in spaces where space is limited and is thus easy to fit with minimal space occupancy.

The Grundfos CM is durable, made of cast iron and stainless steel parts. So, it will perform perfectly for years to come. You can employ it in a water supply for your home, in your small factory, or to raise water pressure. This is a very effective and low-maintenance kind of pump that does its duty nicely and effortlessly. And it is simple to maintain, too, so it will serve you perfectly for decades.

Horizontal Water Pump Key Features

• Compact Design: With its compactness, it is easy to install and perfect for small space applications.
• High Durability: Made with stainless steel for parts like the shaft, impellers, and chambers, and cast iron for the inlet and discharge parts, ensuring a long life and reliable performance.
• User-Friendly: Easy to handle and maintain thanks to its simple design.
• Energy Efficient: The 1-phase motor features fan cooling for enhanced efficiency and performance.

About the Horizontal Pumps

The Grundfos CM is a horizontal, multi-stage end-suction pump that is capable of handling varying water pressure and able to provide a consistent and dependable flow. Its mechanical shaft seal contains a special unbalanced O-ring seal, which enables it to function in smooth operations despite harsh conditions.

The pump is easily fitted into space-critical installations. The state-of-the-art shaft seal is highly resistant to wear and withstands dry running for short periods without damage, ensuring the pump is more reliable and performs better.

Product Specifications:

• Manufacturer: Grundfos
• Rated Voltage: 220-240 V
• Rated Speed: 2720-2800 rpm
• Rated Flow: 1.306 l/s
• Rated Head: 30.69 m
• Resulting Head: 25.44 m
• Material: Stainless steel (shaft, impellers, chambers), Cast iron (inlet and discharge parts)
• Gross Weight: 16.1 kg
• Pipe Connection: Internal Whitworth pipe threads (Rp)

How It Works

The Grundfos CM also includes a stop ring and Nord-lock® washer, allowing everything to remain safe and reliable in operation. You can quickly remove and replace the hydraulic components of the pump from the pump side for your convenience.

Pump Seals

• Primary Seal: The rotating seal ring is made from aluminium oxide (alumina), while the stationary seat is made of carbon graphite, making it suitable for frequent use as a seal. This seal is suitable for alkaline and neutral water with a pH range of 5-10, as well as for use without water for a short period.
• Secondary Seal: It is made of EPDM (ethylene-propylene rubber) material. It is acceptable for use in hot water, but it is not recommended for use with mineral oils.

Motor Specifications

The motor powering the Grundfos CM pump is a fan-cooled, totally enclosed motor. Designed to withstand and deliver reliable, efficient power to the pump. It is rated to EN 50347 standards and meets EN 60034 electrical tolerances, ensuring reliability and safety.

Applications:

• Domestic Use: Ideal for residential homes that require consistent water pressure.
• Small Commercial Use: Ideal for small businesses or shops that require a consistent water supply.
• Booster Systems: Ideal for enhancing water pressure in various systems.

Why Choose the Grundfos CM or CME?

• Compact and Easy to Install: Ideal for systems with space restrictions.
• Durable and Reliable: Constructed with high-quality materials for long-lasting performance.
• Efficient Motor: The motor with a fan helps the pump work well and use less power.
• User-Friendly: Simple design makes installation and maintenance easy.

Contact Us Today!

Are you looking for a compact, reliable, and efficient pump? The Commercial Water Pump , Commercial Reverse Osmosis , is the perfect choice. Contact Water Filter Dubai now to learn more, or simply place your order. We're waiting for your call to serve you with your water system issues.
